Electronic Peeling Tester is used for peel strength test for various bonding, such as adhesive interlinings, multi-layer gluing fabric and hot-melt adhesive lining and garment fabric bonding, interlining and fabric bonding, coating adhesion.
model :
AG40Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
FZ/T 01085, FZ/T 80007.1, AATCC 136, FZ/T 01010, FZ/T60011AG40-Electronic Peeling Tester

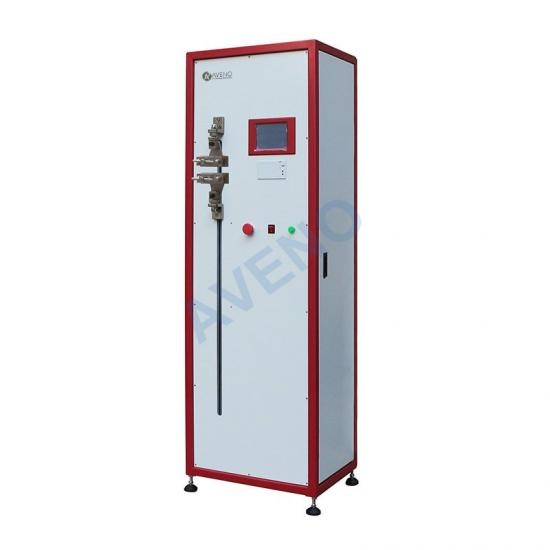

Application Of Electronic Peeling Tester
Electronic Peeling Tester is used for peel strength test for various bonding, such as adhesive interlinings, multi-layer gluing fabric and hot-melt adhesive lining and garment fabric bonding, interlining and fabric bonding, coating adhesion.
Feature Of Electronic Peeling Tester
Standards Of Electronic Peeling Tester
FZ/T 01085, FZ/T 80007.1, AATCC 136, FZ/T 01010, FZ/T60011
Key Specification Of Electronic Peeling Tester
|
Model |
AG40 Electronic Peeling Tester |
|||
|
Force measurement range |
Model |
AG40 -5 |
AG40 -10 |
AG40 -50 |
|
Full scale |
50N |
100N |
500N |
|
|
Measurement range |
1% to 100% of full scale |
|||
|
Working mode |
CRE principle, microcomputer control, LCD display, can be connected to computer |
|||
|
Sampling frequency |
1000 times / sec |
|||
|
Test accuracy |
≤0.2%F·S |
|||
|
Stretching speed |
50 ~ 1000mm / min |
|||
|
Max.elongation |
800mm |
|||
|
Clamp width |
60mm |
|||
|
Elongation resolution |
0.01mm |
|||
|
Power supply |
AC220V 50/60HZ |
|||
|
Dimensions |
52 x40 x160cm |
|||
|
Weight |
60Kg |
|||
Snap Button Pull Tester used to determine the holding or breaking strength of prong-ring attached snap fasteners onto garments or toys.
Bursting Strength Tester is used to determine the expansion force and divergence rate of fabric, woven, knitted fabrics, non-woven, paper and board.
Elmendorf Tearing Tester is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.

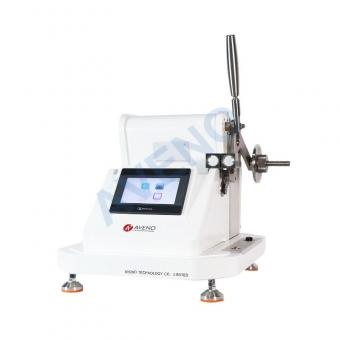

Digital Tearing Tester is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.
