Electronic Twist Tester is used to measure the twist, degree of inhomogeneity of yarns in certain lengths of cotton, wool, linen, and silk, and the twisting and shrinkage of strands, as a basis for assessing product quality and improving the production process.
model :
AY04Brand:
AVENOorigin:
ChinaLead Time：
3days, in stockport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
ISO2061, BS2085, ASTM D1422,1423, JISL1095, GB/T2543.1.2, 14345AY04-Electronic Twist Tester
Application Of Electronic Twist Tester
Electronic Twist Tester is used to measure the twist, degree of inhomogeneity of yarns in certain lengths of cotton, wool, linen, and silk, and the twisting and shrinkage of strands, as a basis for assessing product quality and improving the production process.
Features Of Electronic Twist Tester

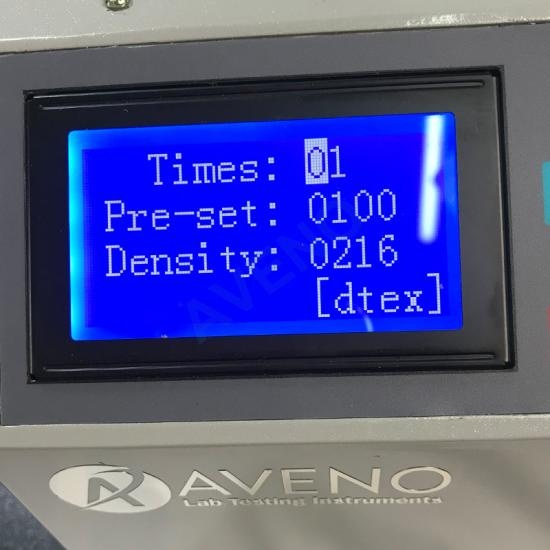

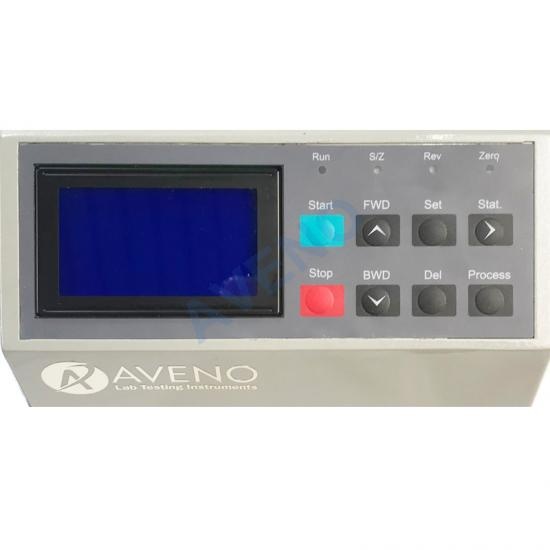

Working mode: microcomputer program control, data processing, print output the result.
a. Average untwisting slip elongation
b. Average untwisting maximum elongation;
c. Direct counting method;
Untwist-retwist method A;
Untwist-retwist method B;
d. Triple twisting method.
Standards Of Electronic Twist Tester
ISO2061, BS2085, ASTM D1422,1423, JISL1095, GB/T2543.1.2, 14345
Key Specification Of Electronic Twist Tester
|
Model |
AY04 Electronic Twist Tester |
|
Length of the sample |
10,25,50,100,200,250,500 mm |
|
Test range |
1～6000.0t/10cm, 1～6000.0t/m |
|

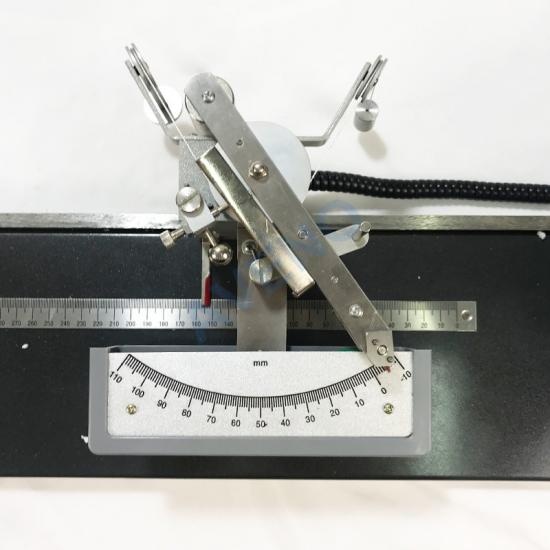

Untwisting elongation range |
Max.60mm |
|
Max.contraction |
20mm |
|
Rotation speed |
200 ~ 2000r/min |
|

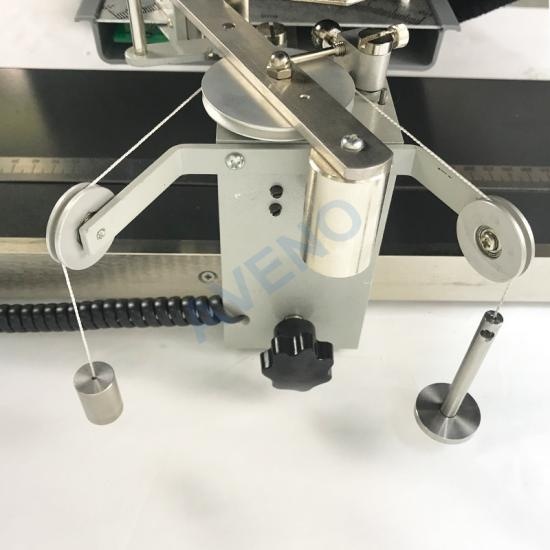

Pre-tension |
0.5 ~ 171.5cN |
|
Power supply |
Ac220V 50Hz 25W |
|
Dimension |
92×17×22cm |
|
Weight |
16kg |
Accessories
|
Standard Accessories |
Analysis Needle |
1set |
|
Magnifier |
1pc |
|
|
Tension weight |
1set (0.5cN*1, 1cN*1, 5cN*1, 10cN*1, 2cN*2, 20cN*2, 50cN*2) |
|
|
Yarn stand |
1pc |
|
|
Power line |
1pc |
|
|
English Operate manual |
1pc |
|
|
Operate video |
1pc |
|
|
Quality certification |
1pc |
Related products

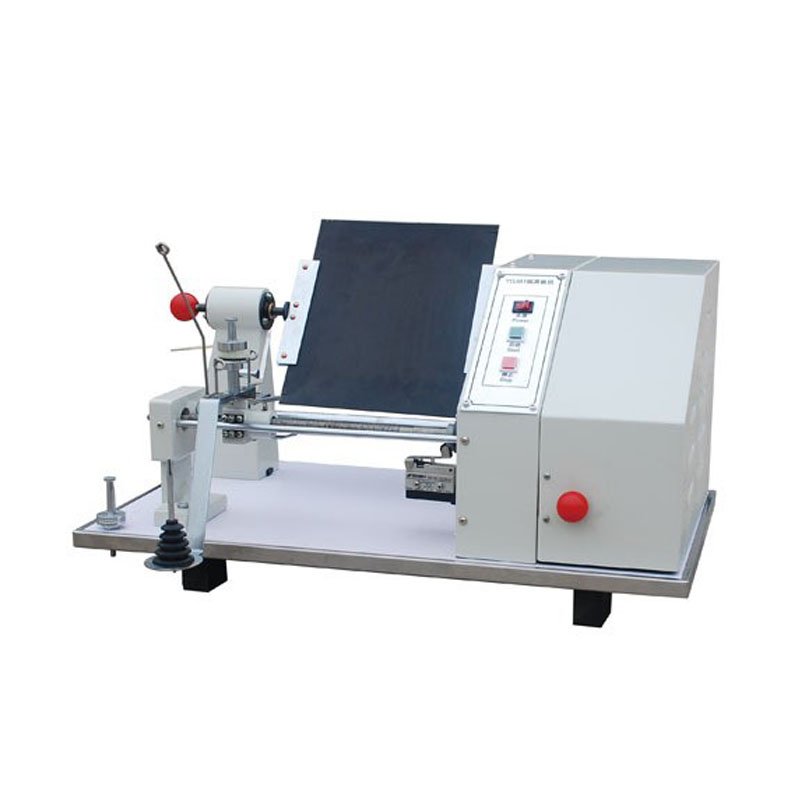

Manual Twist Tester Yarn Examining Machine Electronic Wrap Reel Tester
https://www.avenotester.com/Manual-Twist-Tester-AY03_p113.html
https://www.avenotester.com/Yarn-Examining-Machine-AY02_p112.html
https://www.avenotester.com/Electronic-Wrap-Reel-Tester-AY01_p109.html

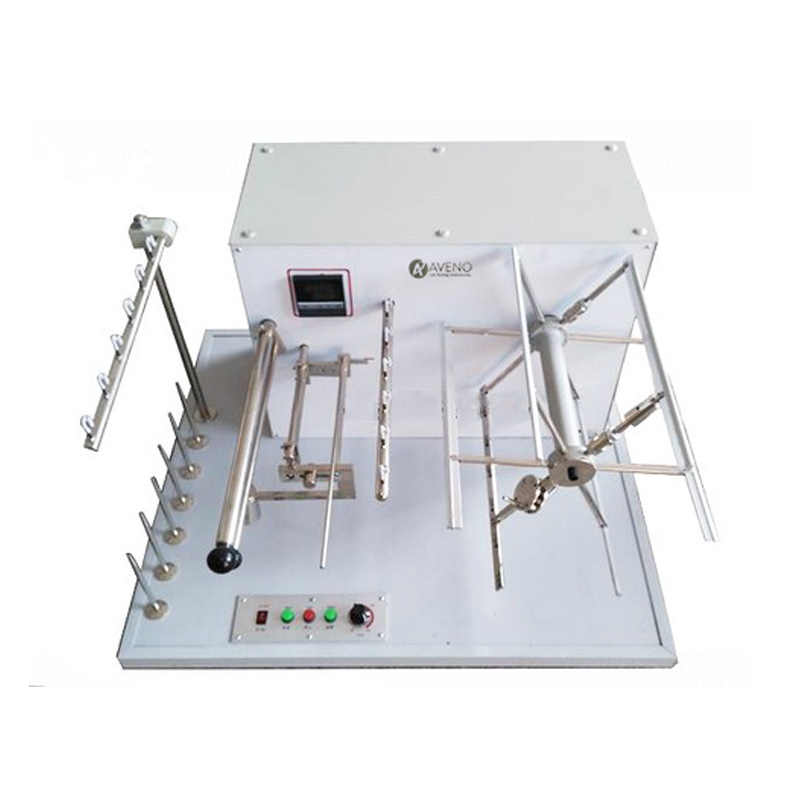

Electronic Wrap Reel Tester Used in the textile, knitting, printing and dyeing, clothing and other industries to accurately determine the length of the yarn for the determination of the linear density or count of textile yarn.
Electric reeling machine used for accurate determination of the length of the yarn for the determination of the linear density or count of the textile yarn and for the strength test of the yarn.

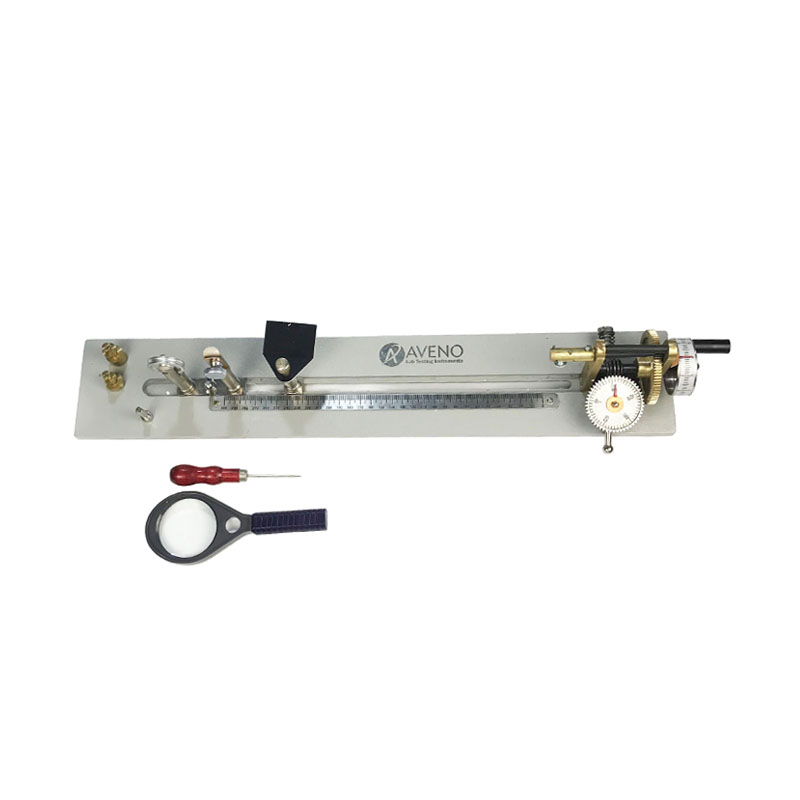

Manual Twist Tester is used to determine the number of twists of various yarns such as cotton, wool, hemp, and silk within a certain length to assess the quality of the product so as to correct the problems in the production process.
