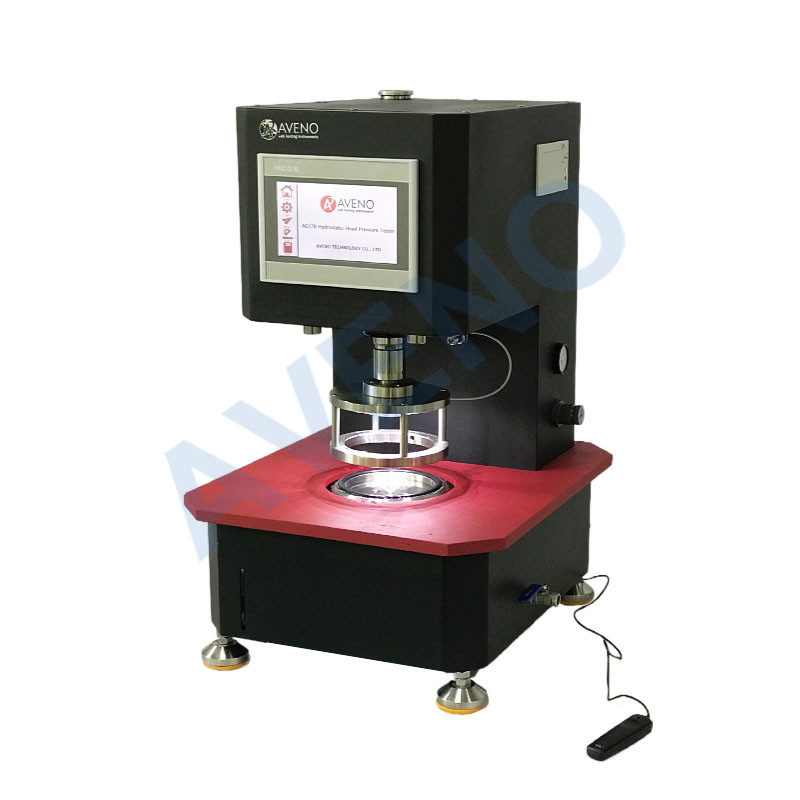

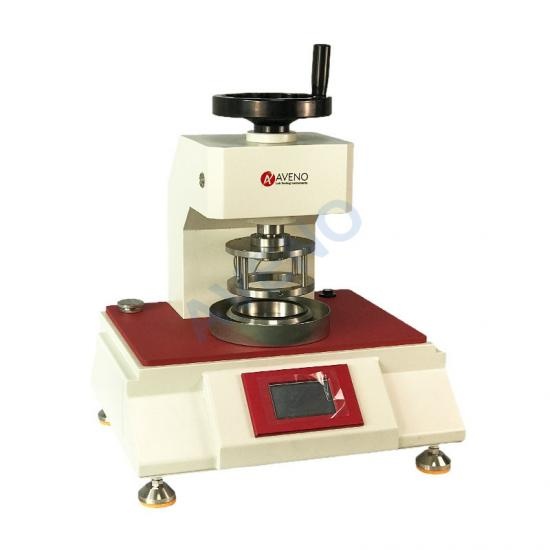

Hydrostatic Head Pressure Tester is used to determine the water penetration resistance of all kinds of fabrics used for waterproofing, such as canvas, coating cloth, tent cloth, tarpaulin, rainproof clothing and geotextile materials, etc..
model :
AG17Brand:
AVENOorigin:
ChinaLead Time：
3days, in stockport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE，ISO9001，ISO17025standard:
GB/T 4744, AATCC 127, ISO 811, BS EN 20811, BS 3321, 3424-26, JIS L 1092A/B, FZ/T 01004.AG17-Hydrostatic Head Pressure Tester
Application Of Hydrostatic Head Pressure Tester
Hydrostatic Head Pressure Tester is used to determine the water penetration resistance of all kinds of fabrics used for waterproofing, such as canvas, coating cloth, tent cloth, tarpaulin, rainproof clothing and geotextile materials, etc..
Feature Of Hydrostatic Head Pressure Tester
Standards Of Hydrostatic Head Pressure Tester
GB/T 4744, AATCC 127, ISO 811, BS EN 20811, BS 3321, 3424-26, JIS L 1092A/B, FZ/T 01004.
Key Specification Of Hydrostatic Head Pressure Tester
|
Model |
AG17-1 |
AG17-2 |
AG17-3 |
|
Measuring range |
500Pa ~ 50kPa |
500Pa ~ 200kPa |
5kPa ~ 500kPa |
|
Water pressure rise rate |
1kpa-20kpa |
1kpa-30kpa |
1kpa-100kpa |
|
Test accuracy |
0.2%F.S |
||
|
Test area |
100cm2, 7.8cm2 （optional or customized） |
||
|
Test method |
Supercharging method, leakage method |
||
|
Unit |
Pa, Kpa, mmHg, cmH2O freely set |
||
|
|
AC220V, 50/60HZ |
||
|
Dimensions |
55×40×50cm |
||
|
Weight |
50kg |
||
Accessories Of Hydrostatic Head Pressure Tester
|
Standard Accessories |
100cm² griper |
1set |
|
Calibration plate |
1set |
|
|
Rubber ring |
1set |
|
|
Power line |
1set |
|
|
Option Accessories |
Other size of griper |
|
Related products
Hydrostatic Head Pressure Tester Digital Air Permeability Tester
https://www.avenotester.com/hydrostatic-head-pressure-tester-ag17b_p26.html
https://www.avenotester.com/digital-air-permeability-tester-ag18a_p180.html
Snap Button Pull Tester used to determine the holding or breaking strength of prong-ring attached snap fasteners onto garments or toys.
Bursting Strength Tester is used to determine the expansion force and divergence rate of fabric, woven, knitted fabrics, non-woven, paper and board.
Elmendorf Tearing Tester is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.
Digital Tearing Tester is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.
Button Impact Resistance Tester is used to determine the impact resistance of plastic sew-through flange buttons.
Crease Recovery Tester and Loading Device, is used to determining recovery performance of horizontal creases of fabrics.
Hydrostatic Head Pressure Tester is used to determine the water penetration resistance of all kinds of fabrics used for waterproofing, such as canvas, coating cloth, tent cloth, tarpaulin, rainproof clothing and geotextile materials, etc..
Automatic Air Permeability Tester is used to determine the air permeability properties of fabric, suitable for many kinds of textile fabrics, including industrial fabrics, textile products such as non-wovens and other breathable materials.
Toilet Paper Dispersibility Tester is used for toilet paper dispersibility test, simulate the force of paper and products in the toilet, observe whether it can be dispersed within the specified time, or determine the time required for dispersion, the tester consists of a cylinder, a rotor, a motor and a gas flow meter.
read more
AAA+ rated commercial tumble dryer designed for veterinary use unlike domestic machines. Having an on-premises laundry is the most cost effective and easy way to manage laundering your items to control cross infection.
read more

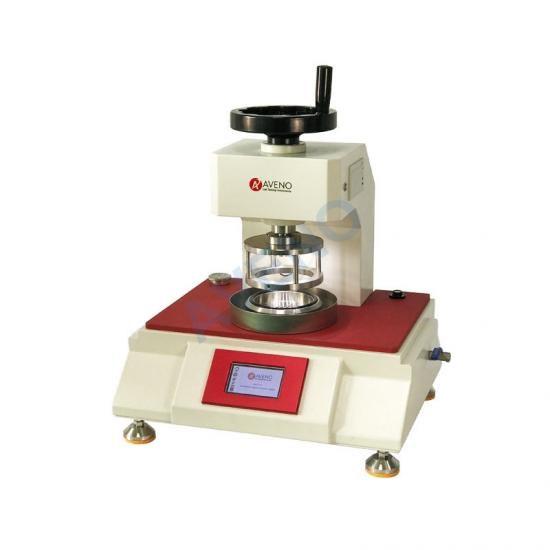

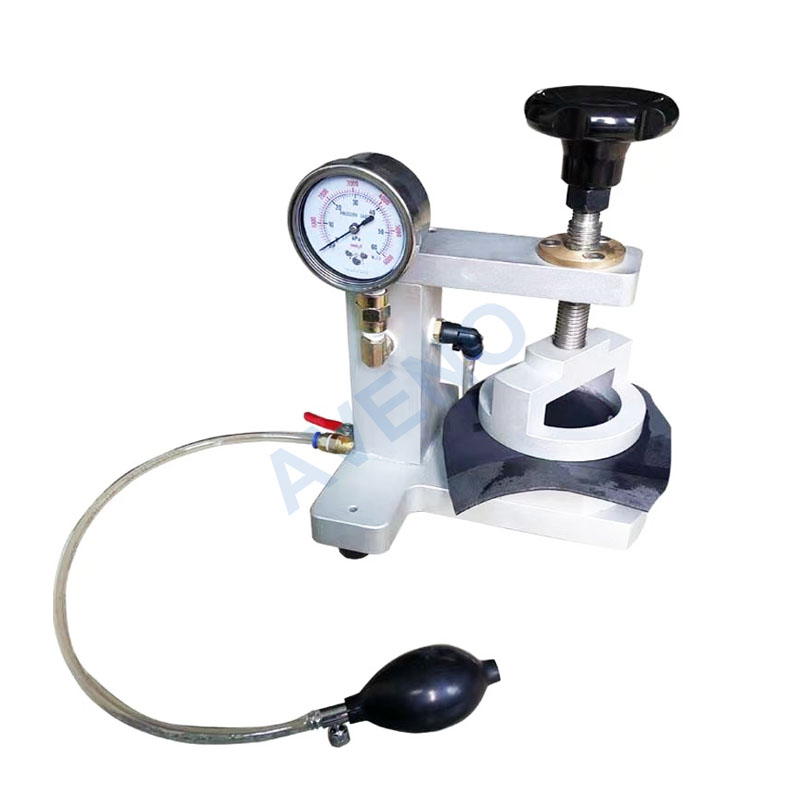

Hydrostatic Head Pressure Tester is used to test the water pressure of waterproof clothing series, raincoat series, tent series, waterproof bag series, waterproof gloves series and other products under a certain pressure.
