Rain Tester is used to determine the penetration resistance of fabrics or composites at different intensities of water impact.
model :
AG22Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE, ISO9001, ISO17025standard:
AATCC 35, GB/T23321, ISO 22958.

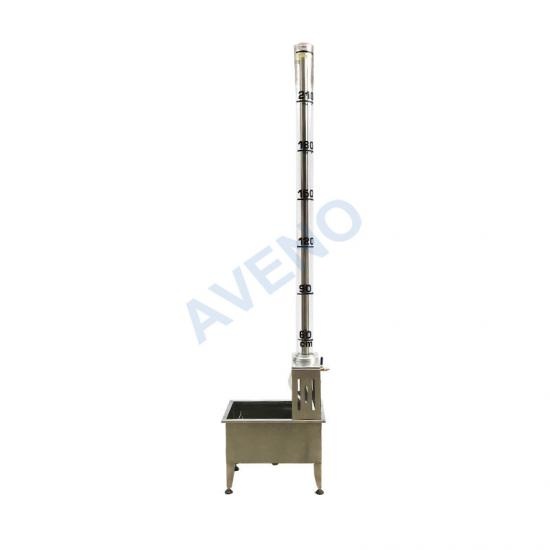

AG22-Rain Tester
Application Of Rain
Tester
Rain Tester is used to determine the penetration resistance of fabrics or composites at different intensities of water impact. Simulated rain spray from horizontal direction to sample fabric which vertical fixed in stainless steel tank.
Standards Of Rain Tester
AATCC 35, GB/T23321, ISO 22958.
Key Specification Of Rain Tester
Model
AG22 Rain Tester
Sample size
200×200mm
Size of water - absorbing paper
152×152mm

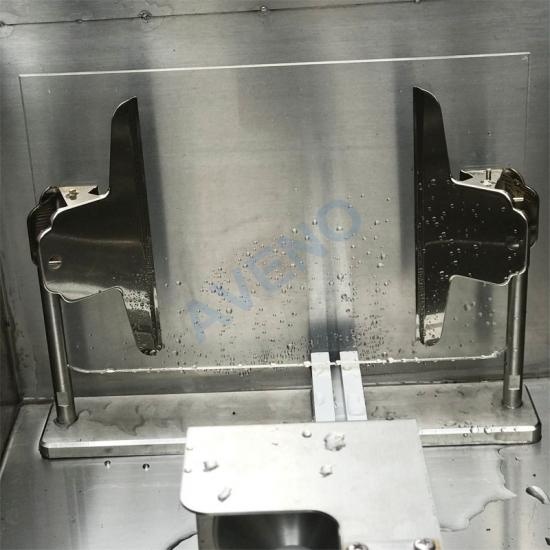

Sample clip width
152mm
Sample clip distance
165mm
Sample clip size
178×229mm

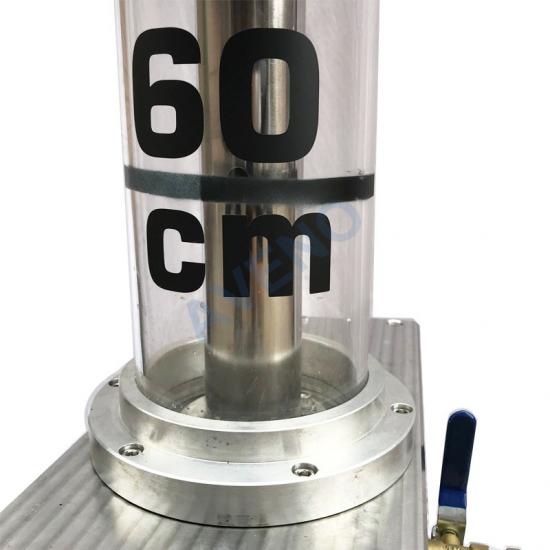

Water column adjustable value
A: 0.6m, B: 0.9m, C: 1.2m, D: 1.5m, E: 1.8m, F: 2.1m, G: 2.4m

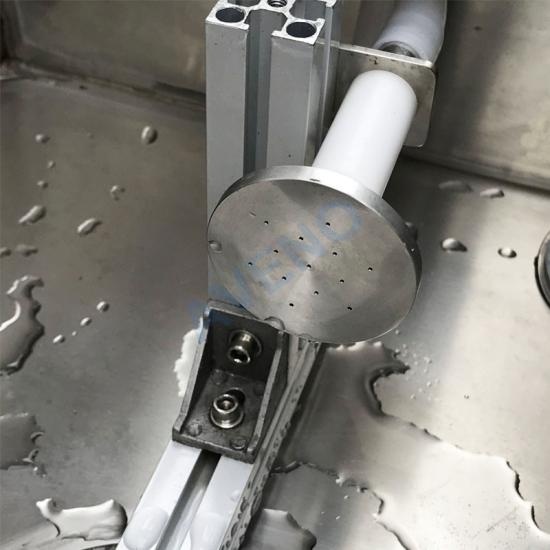

Nozzle hole
13pcs, Diameter: 0.99±0.013mm
Nozzle to sample distance
305mm
Dimension
520×785×2710mm
Weight
102k
Accessorie Of Rain Tester
|
Standard Accessories |
Nozzle |
1pc |
|
Test stand |
1set |
|
|
Fixture |
1set |
|
|
Water tank |
1set |
|
|
Mounting rod |
1set |
