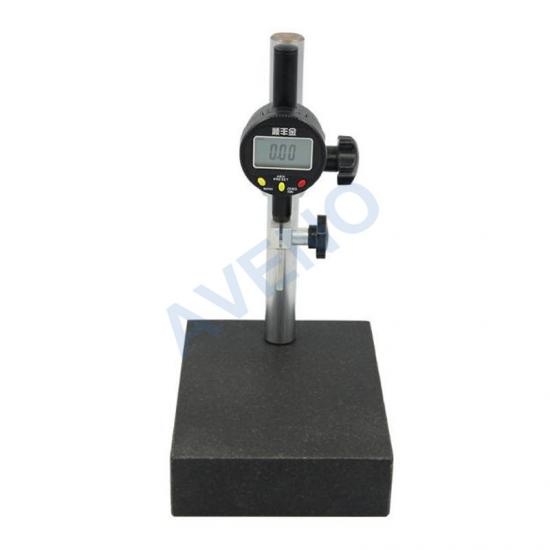

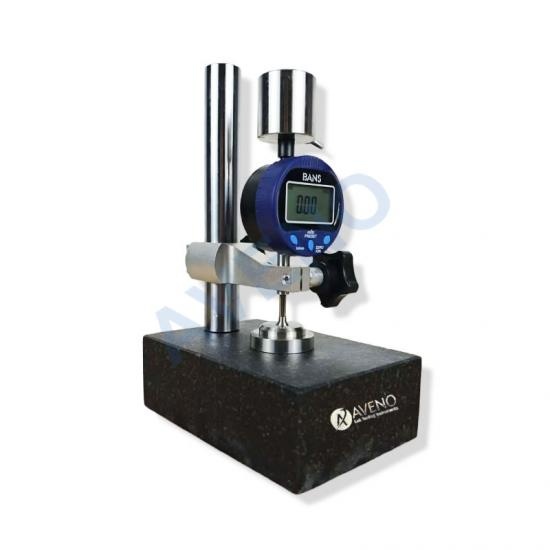

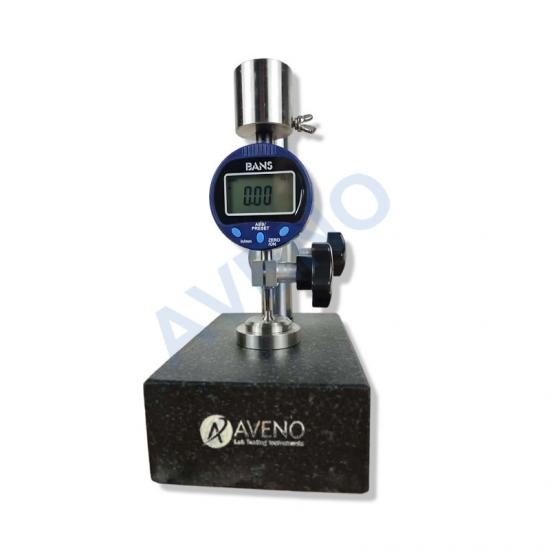

Fabric Digital Thickness Tester is special thickness meter for textile meet standard ASTM D1777.
model :
AG23Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE, ISO9001, ISO17025standard:
ASTM D1777 and etc.AG23-Fabric Digital Thickness Tester
Application Of Fabric
Digital Thickness Tester
Fabric Digital Thickness Tester is special thickness meter for textile. Minimum load on specimen by diameter 1.129inch(28.7mm) presser foot, can accurate measure out the thickness of soft materials.
Standards Of Fabric Digital Thickness Tester
ASTM D1777.
Key Specification Of Fabric Digital Thickness Tester
|
Model |
AG23 Fabric Digital Thickness Tester |
|
Display |
digital display |
|
Thickness measure range |
0.01～25 mm, |
|
Precision accuracy |
0.01 mm |
|
Presser foot diameter |
28.7 mm, according to ASTM D1777 |
Related products

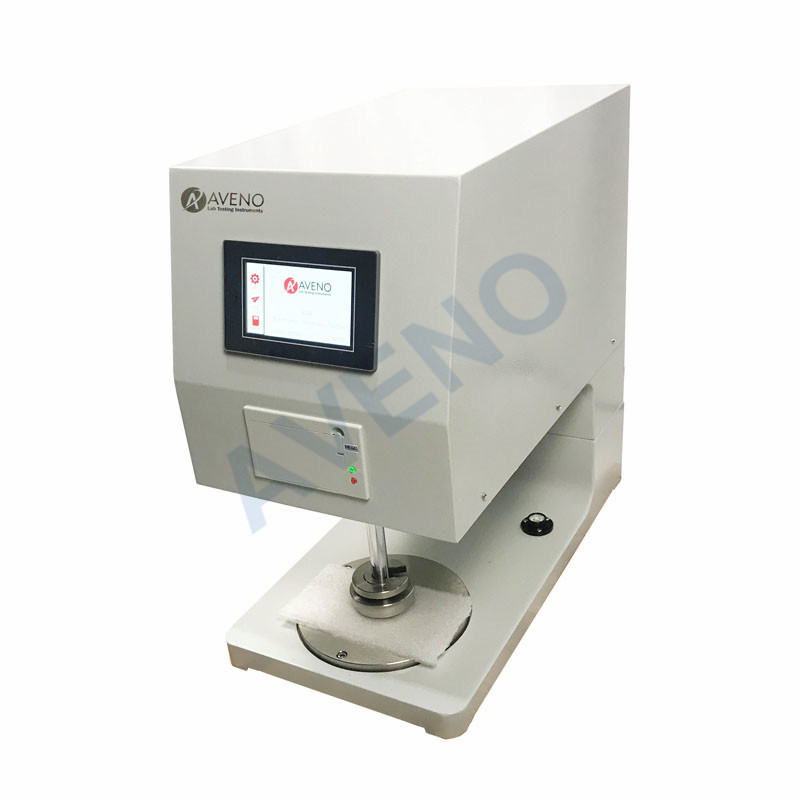

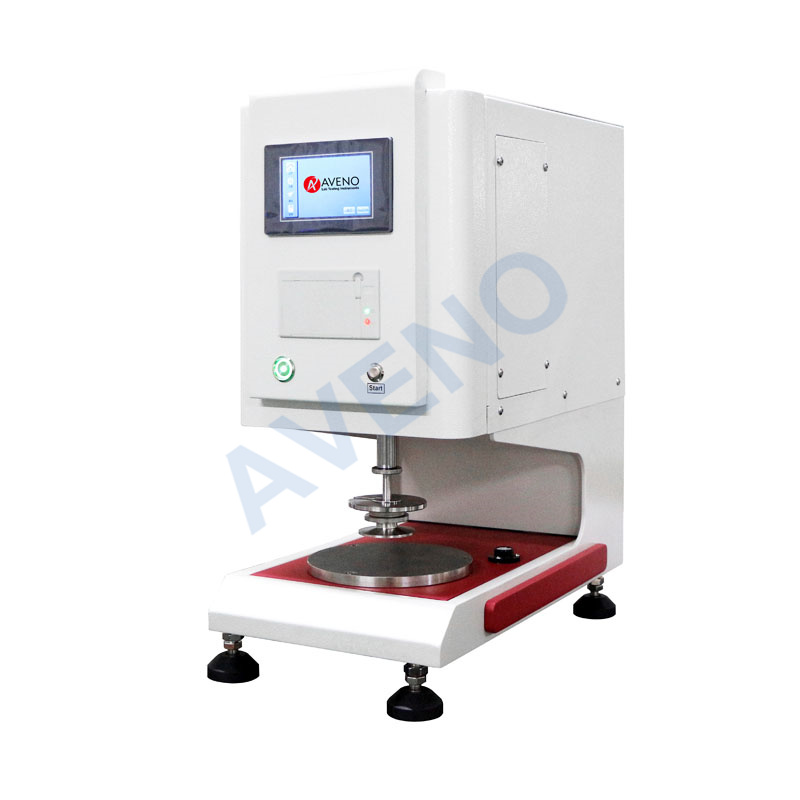

Non-woven Thickness Gauge AG23B ELectronic Thickness Tester AG24
