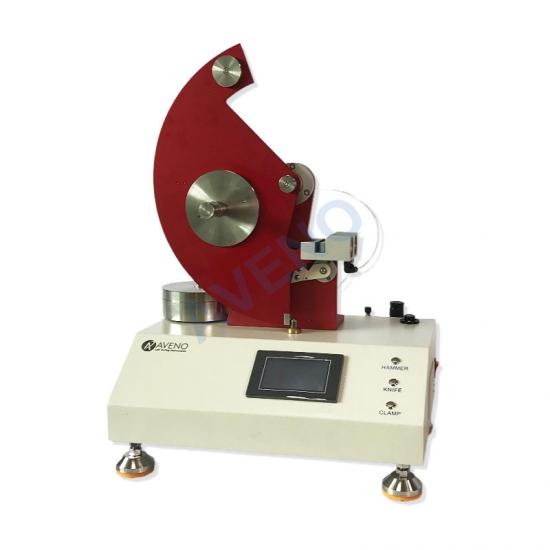

Electronic Tearing Tester is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.
model :
AG11-2Brand:
AVENOorigin:
ChinaLead Time：
3-7daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
Textile:GB/T 3917.1, ASTM D1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17, NF G07-149, Paper: GB/T 455, APPITA P 400, ASTM D 689, BS 4468, CSA D9, DIN 53128, EN 21974, ISO 1974, JIS P 8116, PAPTAC D9, SCAN P11, TAPPI T4AG11-2-Electronic Tearing Tester
Application Of Electronic Tearing Tester
Electronic Tearing Tester is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.
Standards Of Electronic Tearing Tester
Key Specification Of Electronic Tearing Tester
|
Model |

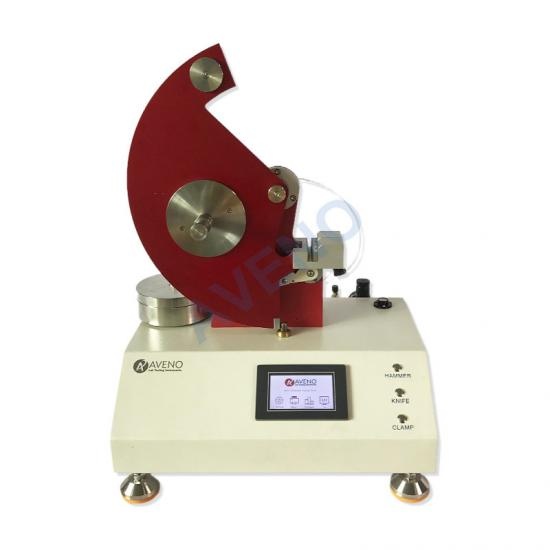

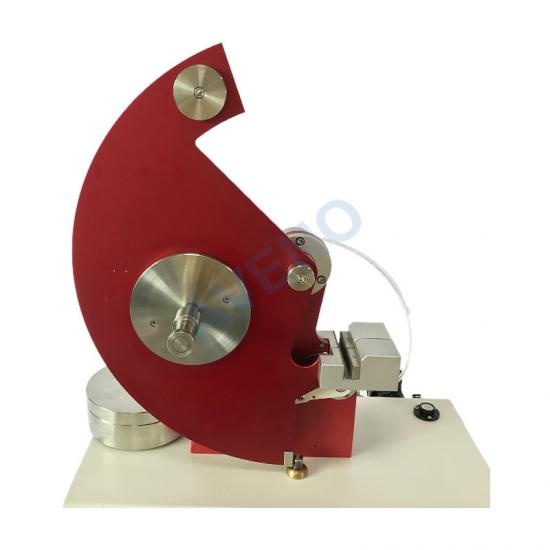

AG11-2 Electronic Elmendorf Tearing Tester |
|
Range of Tearing Force |
A: 16N B: 32N C: 64N |
|
Accuracy |
≤±0.2％ F·S |
|
Cut Length |
20±0.1mm |
|
Rip Length |
43mm |
|

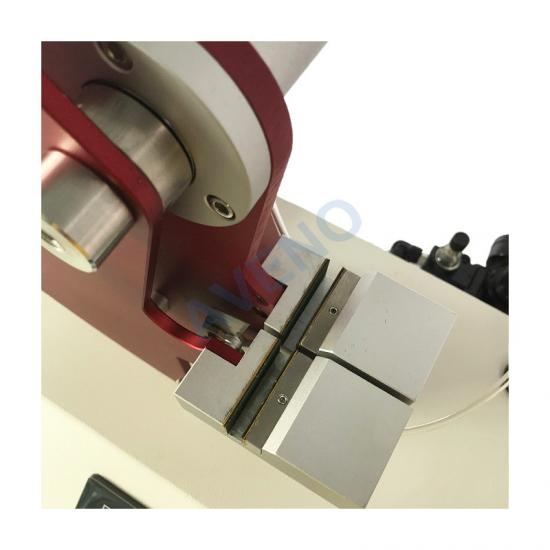

Sample clamping method |
Pneumatic |
|
Sample size |
100 x 63mm (LxW) |
|
Power supply |
AC 220V, 50/60HZ |
|
Dimensions (LxWxH) |
400 x 210 x 395mm |
|
Weight |
30Kg |
Accessories Of Electronic Tearing Tester
|
Standard Accessories |

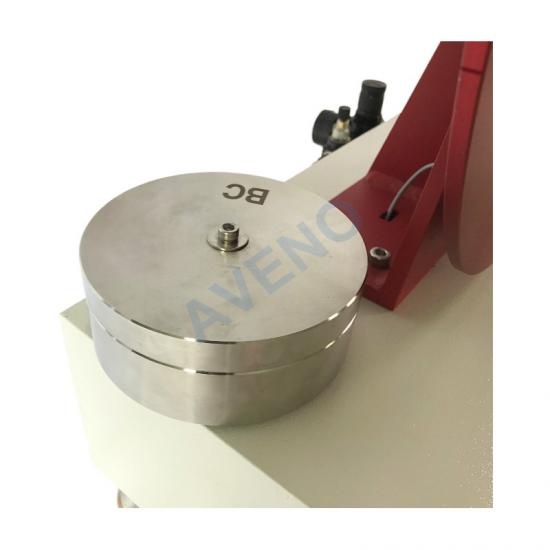

32N load weight |
1pc |
|
64N load weight |
1pc |
|
|
Sample Template |
1pc |
|
|
English operation software |
1pc |
|
|
Cable connect to PC |
1pc |
|
|
Spare blade |
1pc |
Related products:

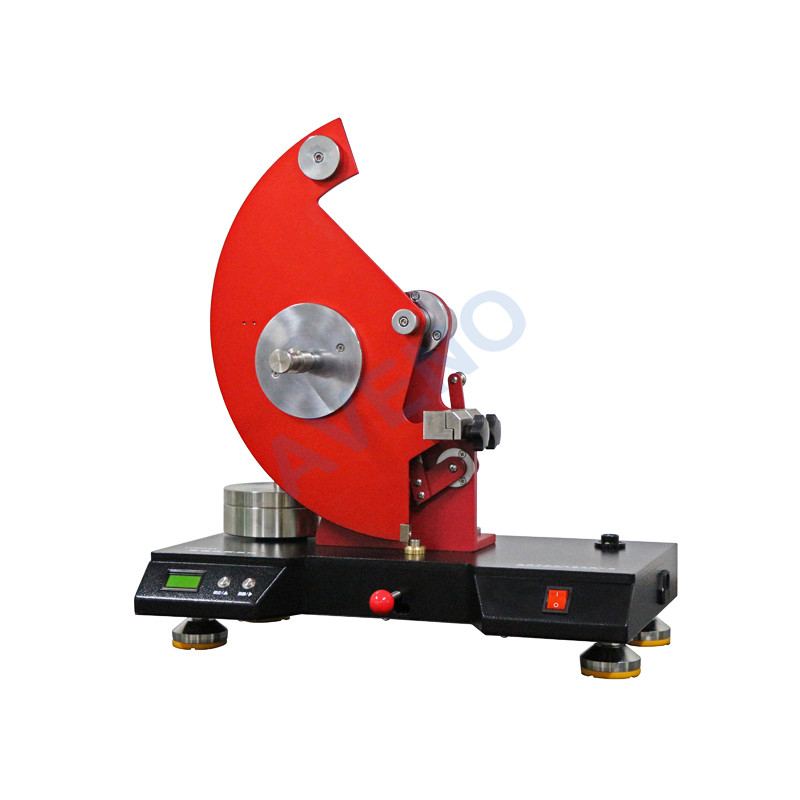

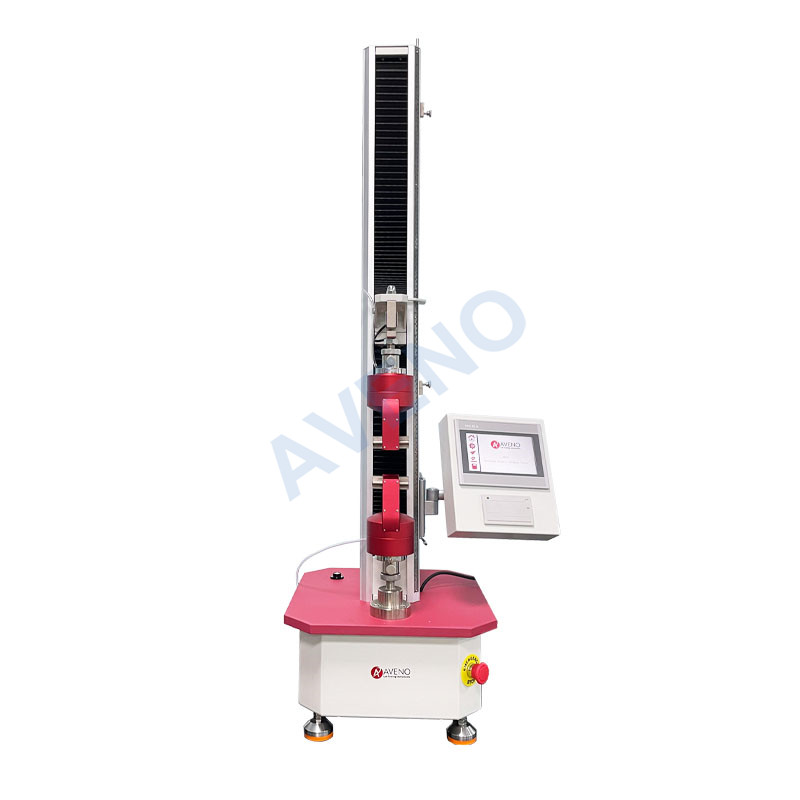

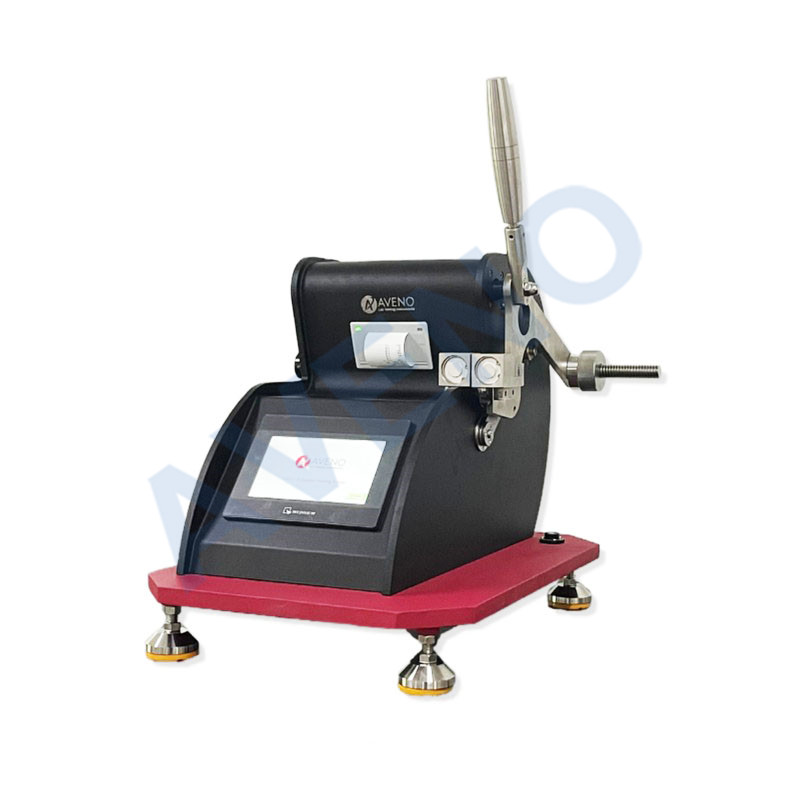

1. Elmendorf Tearing Tester 2. Digital Tearing Tester 3.Universal Tensile Strength Tester
(Falling-Pendulum Type) (Single Column)
1. https://www.avenotester.com/elmendorf-tearing-tester-falling-pendulum-type-ag11-1_p21.html
2. https://www.avenotester.com/digital-tearing-tester-ag11-3_p212.html
3. https://www.avenotester.com/universal-tensile-strength-tester-single-column-ag02_p11.html
Snap Button Pull Tester used to determine the holding or breaking strength of prong-ring attached snap fasteners onto garments or toys.
Bursting Strength Tester is used to determine the expansion force and divergence rate of fabric, woven, knitted fabrics, non-woven, paper and board.
Elmendorf Tearing Tester is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.

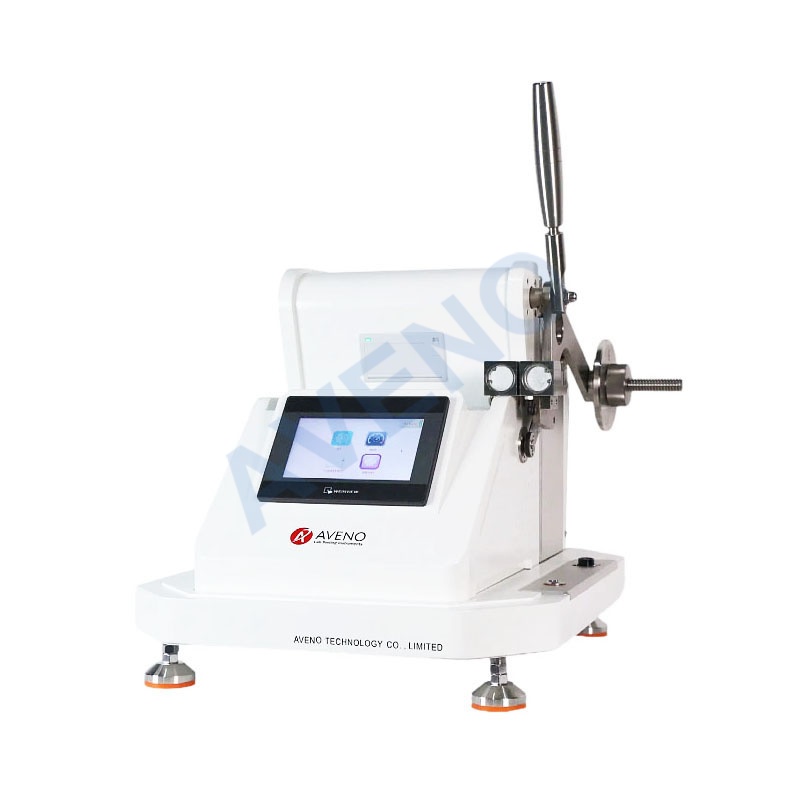

Digital Tearing Tester is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.
