Horizontal and Vertical Flame Chamber is used to test the flammability of toys, textiles, plastics, and other nonmetallic materials.
model :
AT21Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:

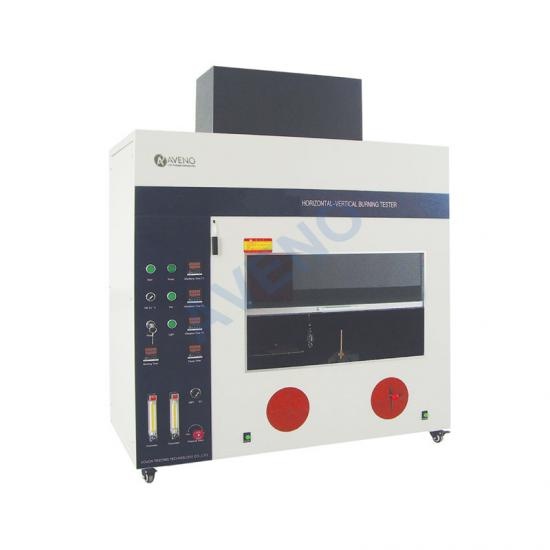

UL 94, IEC 60695-11, IEC 60950, IEC 707, GB/T 2408, GB/T 5169, ISO 9772.3, ISO 1210, ASTM D635, D3801, D4804, D4986.AT21-Horizontal and Vertical Flame Chamber
Application Of Horizontal and Vertical Flame Chamber
Horizontal and Vertical Flame Chamber is used to test the flammability of toys, textiles, plastics, and other nonmetallic materials.
Test Principle Of Horizontal and Vertical Flame Chamber
Sample in a horizontal or vertical state should be burned at regular intervals several times for a certain flame height and a certain flaming angle, then according ignite, burning duration, and whether the ignition material under the sample is ignited to assessment of its combustibility and risk.
Feature Of Horizontal and Vertical Flame Chamber
Standards Of Horizontal and Vertical Flame Chamber
UL 94, IEC 60695-11, IEC 60950, IEC 707, GB/T 2408, GB/T 5169, ISO 9772.3, ISO 1210,
ASTM D635, D3801, D4804, D4986.
Key Specification Of Horizontal and Vertical Flame Chamber
|
Model |
AT21 Horizontal and Vertical Flame Chamber |
|
Chamber internal volume |
0.8m2 |
|
Chamber internal dimension |
120*60*112cm |
|
Flame height adjust range |
10-200mm |
|
Gas flow adjust range |
20-1000mm/min |
|
Gas pressure difference adjust range |
5-200 spout |
|
Flame angle adjust range |
0-45degree |
|
Burner height adjust range |
50mm |
|
Sample vertical move range |
450mm |
|
Sample horizontal move range |
180mm |
|
Burning time |
0.00-99.99s |
|
Residual flame time |
0.00-99.9s |
|
Time precision |
0.01s |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
120*60*115cm |
|
Weight |
125kg |
Accessories Of Horizontal and Vertical Flame Chamber
|
Standard Accessories |
Flame height calibration scale |
1pc |
|
Sample angle calibration fixture |
1set |
|
|
Horizontal combustion test fixture |
1set |
|
|
Vertical combustion test fixture |
1set |
