Multifunction Crush Tester is used to test Ring Crush Test (RCT), Edge Crush Test (ECT). Flat Crush Test (FCT), Pin Adhesion Test (PAT) and Concora Medium Test (CMT).
model :
AN13Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
ISO 3035, ISO 3073, ISO 7263, GB/T 2679.8, GB/T 6546-1998, GB/T 6548, GB/T 2679AN13-Multifunction Crush Tester

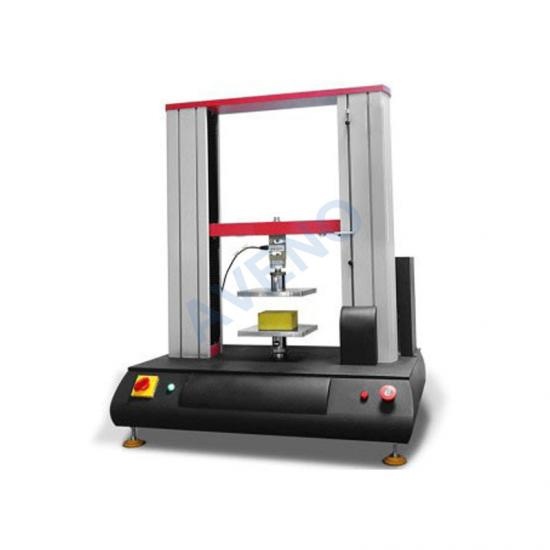

Application Of Multifunction Crush Tester
Multifunction Crush Tester is used to test Ring Crush Test (RCT), Edge Crush Test (ECT). Flat Crush Test (FCT), Pin Adhesion Test (PAT) and Concora Medium Test (CMT).
Standards Of Multifunction Crush Tester
ISO 3035, ISO 3073, ISO 7263, GB/T 2679.8, GB/T 6546-1998, GB/T 6548, GB/T 2679
Key Specification Of Multifunction Crush Tester
|
Model |
AN13 Multifunction Crush Tester |
|
Control mode |
Computer control |
|
Capacity |
5KN |
|
Load resolution |
1/10000 |
|
Load accuracy |
±0.5% |
|
Test space |
40*50*60cm |
|
Test speed |
0.1-500mm/min |
|
Power supply |
Ac220V, 50/60HZ |
|
Dimension |
100*50*100cm |
|
Weight |
120kg |
Accessories Of Multifunction Crush Tester
|
Option Accessories |
RCT |
|
ECT |
|
|
FCT |
|
|
PAT |
|
|
CMT |
|
|
VPT |
RCT Test Dics is a special instrument for testing the ring compressive strength of paper and paperboard.
Carton Bursting Strength Tester is used to test the burst breaking strength of corrugated board and corrugated cartons.
Box Compression Tester used to test the pressure resistance of cartons is suitable for pressure resistance, deformation and stacking tests of corrugated cartons, honeycomb cartons and other packages.
Cobb Water Absorption Tester is designed for water absorption of cardboard-basic parameters test method and requirements specified (Cobb method).
RCT Sample Cutter is used to cut sample for RCT or other tests, and its blade combination is precise so that the edge of the sample can be smoothed out.
Paper Softness Tester is determination of softness for high grade toilet paper, tobacco sheet, fiber paper and other materials.
Brightness and Opacity Tester is used to measure the brightness of an object or powder with a flat non-colored surface.
Incline Impact Tester simulates the ability of product packaging to resist impact damage in the actual environment, such as handling, shelf stacking, motor sliding, locomotive loading and unloading, product transportation, etc.
Toilet Paper Dispersibility Tester is used for toilet paper dispersibility test, simulate the force of paper and products in the toilet, observe whether it can be dispersed within the specified time, or determine the time required for dispersion, the tester consists of a cylinder, a rotor, a motor and a gas flow meter.
