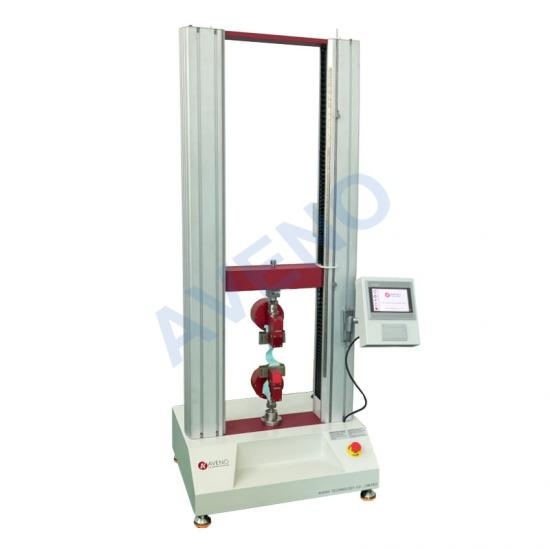

Universal Tensile Strength Tester (Double Column) AG01

Universal Tensile Strength Tester (Double Column) AG01

Universal testing machine is a equitment used for variety of materials: static load, tensile, compression, bending, shear, tear, peeling off testing.

  • model :

    AG01
  • Brand:

    AVENO
  • origin:

    China
  • Lead Time:

    7 days
  • port:

    Xiamen port
  • Payment:

    T/T, L/C
  • certificate:

    CE, ISO9001, ISO17025
  • standard:

    ISO, EN, ASTM, AATCC, M&S, JIS, and etc.
  • Product Detail

AG01-Universal Tensile Strength Tester (Double Column)


Application Of Universal Tensile Strength Tester(Double Column)

Universal Tensile Strength Tester(Double Column) is used for a variety of materials for equipment static load, tensile, compression, bending, shear, tear, mechanical strength testing machine used for testing the performance of mechanical peeling, suitable for fabric, yarn, leather, rubber, plastic film, wire and cable, physical and mechanical properties of test steel and other materials.


Feature Of Universal Tensile Strength Tester(Double Column)

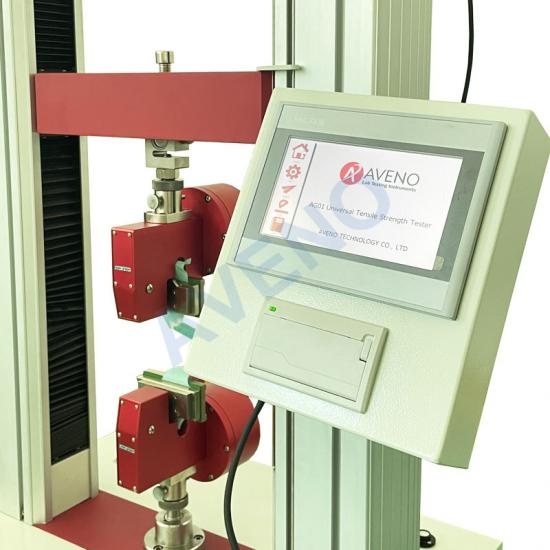

  • Constant elongation (CRE) principle, microcomputer control 5. 7 inch touch screen control, built-in printer, support for online communication.
  • AC servo drive, high precision wire rod drive, wide speed range (0.01-500 mm/min), digital setting, smooth operation.
  • The software can be used to analyze the data of fracture point, break off point, yield point, initial modulus, elastic plastic deformation and so on, amplify the whole curve fixed point, query the test data at fixed point, and facilitate the mechanical testing and analysis of various materials.
  • Variety of protective measures: upper beam, lower limit position protection device; fixture protection device; setting displacement and load limit software protection; sensor overload protection; sample load software protection; overcurrent, overvoltage protection. Real time monitoring of main components
  • Aluminum alloy profile column, can option pneumatic gripers, humanized automatic mode with multiple protective measures to make sure safety.
  • Available on tablets, wireless WIFI controls, or via Android phones.


Key Specification Of Universal Tensile Strength Tester(Double Column)

Model

AG01-Universal Tensile Strength Tester (Double Column)

Max. Capacity

500N, 1KN, 2KN, 5KN,10KN,(option)

Control mode

Computer control with touch screen display mode

Test mode

CRE principle

Test range

1%―100% of full capacity

Force Resolution

1/100,000

Force Accuracy

±0.2%F*S

Stroke Resolution

0.001 mm

Test Speed

0.001-1000mm/min, can be set

Max stroke

1100mm(no including griper), (it can be custom made

Gantry width

400mm

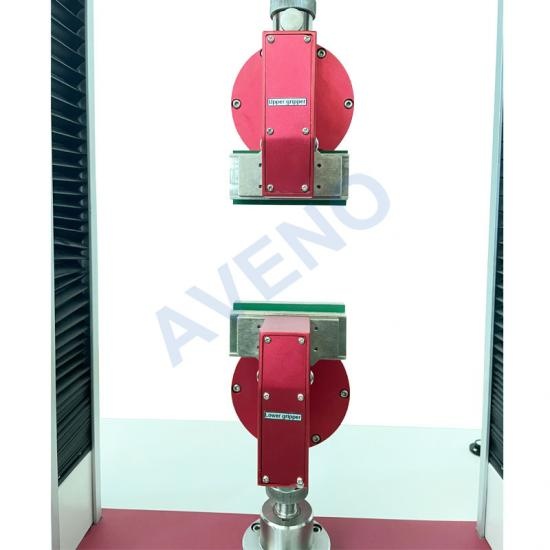

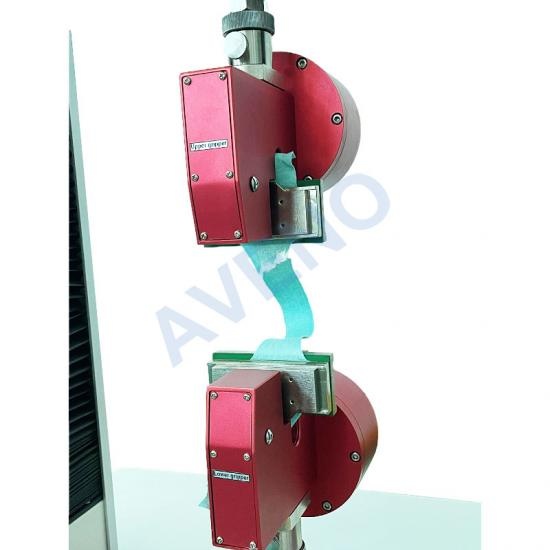

Sample clamping

Manual griper and pneumatic griper optional

Force Unit Switch

Kgf, N, Ibf, g, ton, Mpa, Free conversion

Machine Drive

Servo motor drive, synchronous wheel and precision ball screw drive

Dimensions

82*63*180cm

Weight

120kg

Power Supply

AC220V, 50/60HZ


Accessories Of Universal Tensile Strength Tester(Double Column)

Standard Accessories

Manual grips

1set

English operation software

1pc

Cable connect with PC

1pc

Load cell

1pc

Option Accessories

Desk Top Computer(HP)

Grips and load cell


Related products

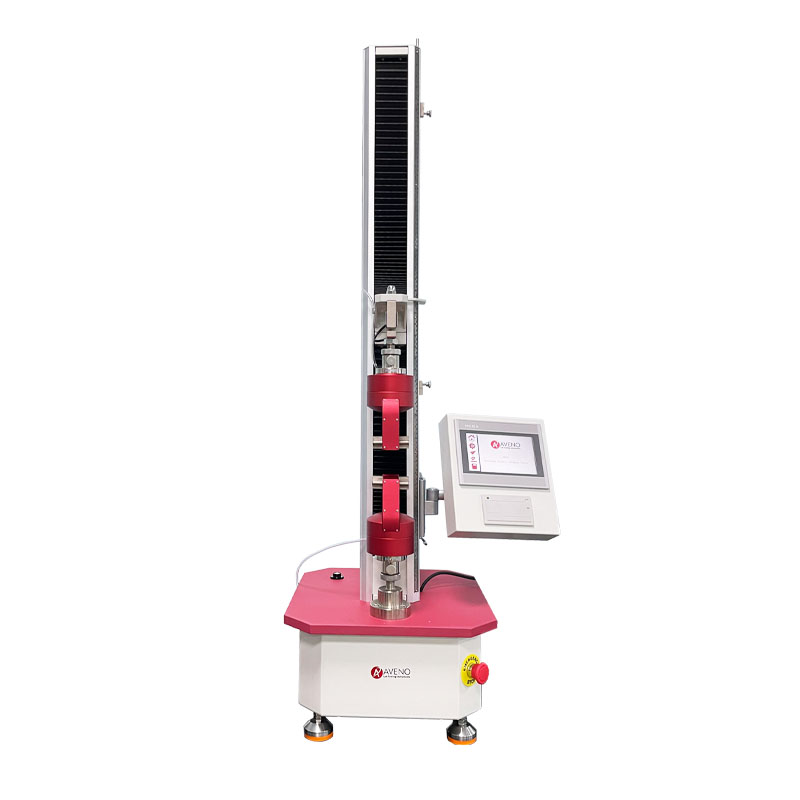

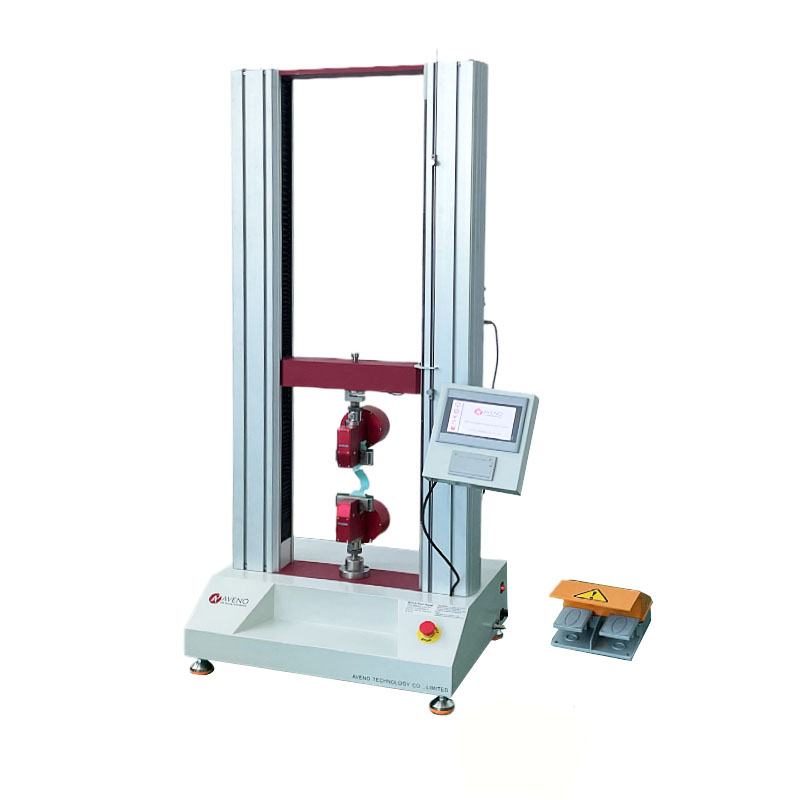

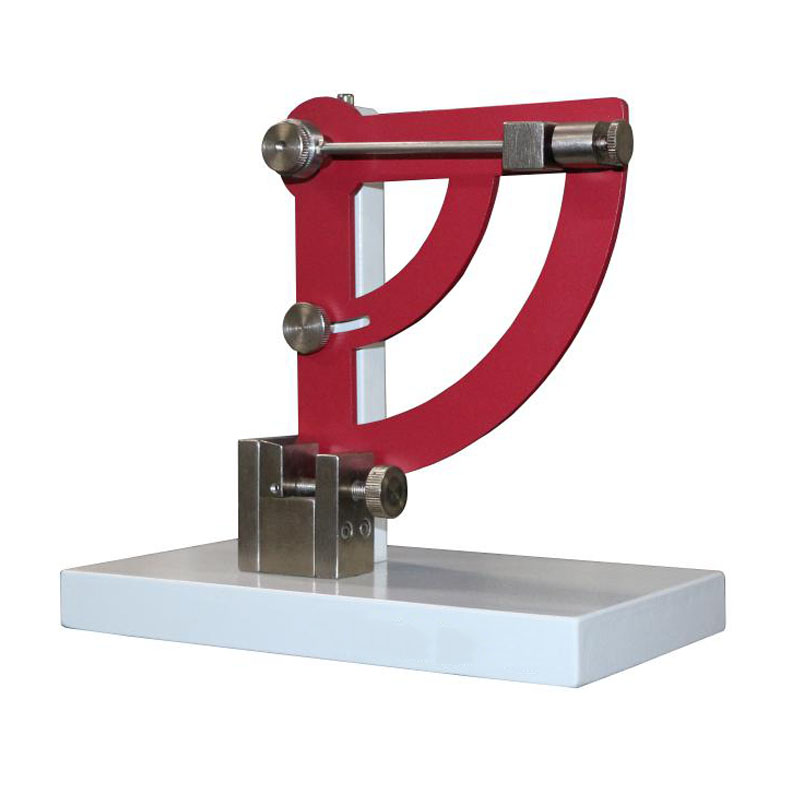

Universal Tensile Strength Tester (Single Column) Button Impact Resistance TesteUniversal Tensile Strength Tester (Double Column)
