Compression Rebound Tester is used to test compression resilience performance of rubber products under a certain load and time.
model :
AF30Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:

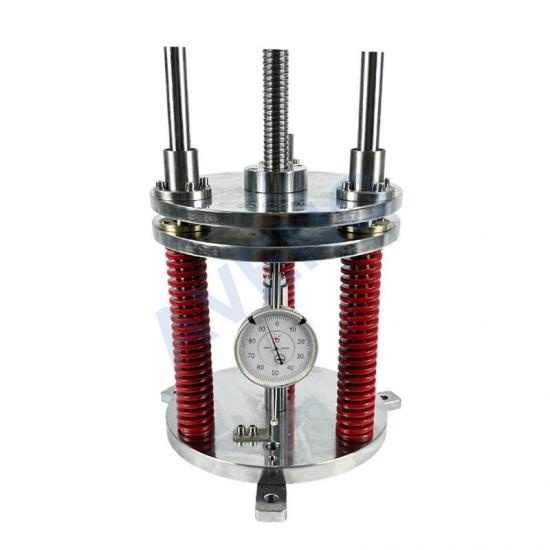

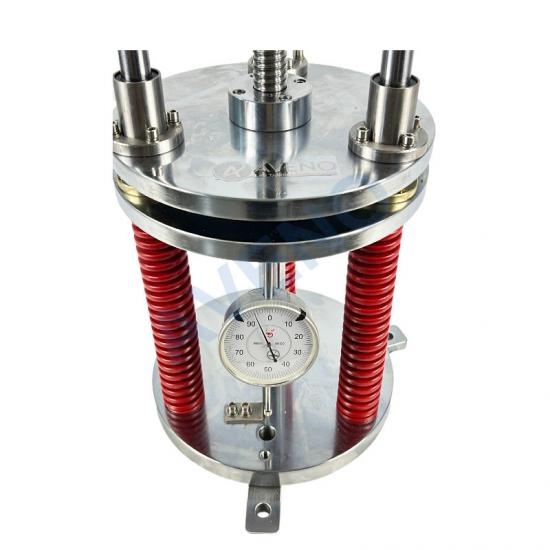

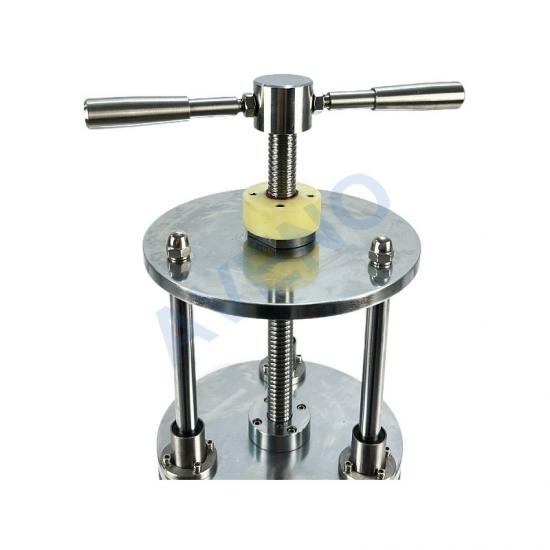

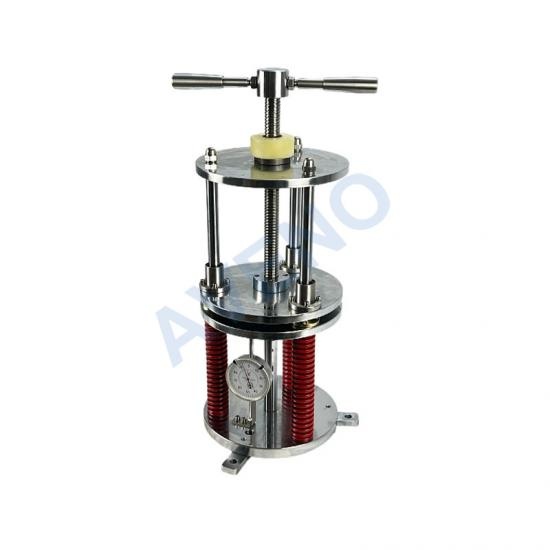

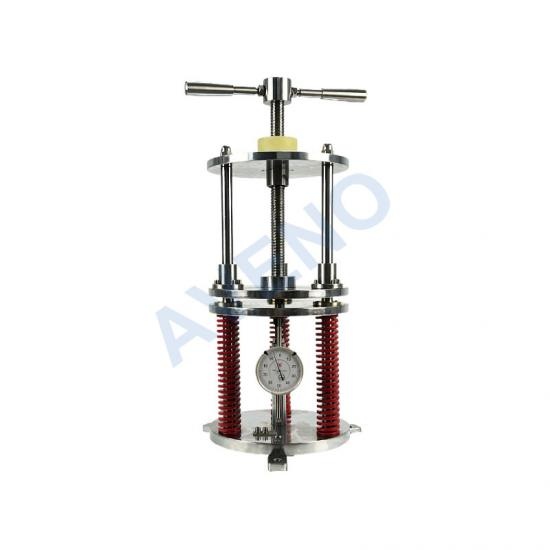

ASTM D395,SATRA TM 64AF30 Compression Rebound Tester
Application Of Compression Rebound Tester
Compression Rebound Tester is used to test compression resilience performance of rubber products under a certain load and time.
Take a standard sample pieces, flat on the test plate between the two boards, after times according standard, release the test piece and cool it, measure the final central thickness of the test piece, according formula to calculate its compression rebound rate.
Standards Of Compression Rebound Tester
ASTM D395,SATRA TM 64
Key Specification Of Compression Rebound Tester
|
Model |
AF30 Compression Rebound Tester |
|
Dial indicator |
0.01-50mm |
|
Press plates |
9pcs φ=97mm h=3mm |
|
effective trip |
≥100mm |
|
Sample size |
Method 1:foam Ø29.0 mm, Non-foaming material Ø14.5 mm Method 2:foam 25.4 × 25.4 mm;Non-foaming material Ø12.7 mm |
|
Dimension |
35*35*72 |
|
Weight |
40kg |
