Scott Type Crease Flex Abrasion Tester is used for testing crease flex and abrasion resistance of artificial leather and fabrics.
model :
AF75Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:

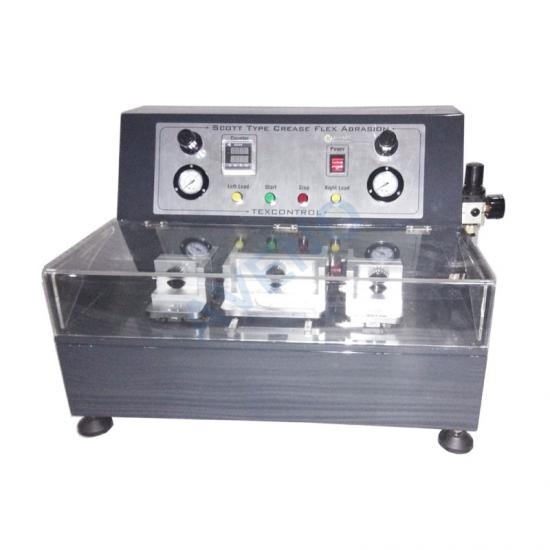

GB/T 8948, GB/T 8949, JIS K6404-6, JIS L1096AF75-Scott Type Crease Flex Abrasion Tester
Application of Scott Type Crease Flex Abrasion Tester
Scott Type Crease Flex Abrasion Tester is used for testing crease flex and abrasion resistance of artificial leather and fabrics.
Standards of Scott Type Crease Flex Abrasion Tester
GB/T 8948, GB/T 8949, JIS K6404-6, JIS L1096
Principle of Scott Type Crease Flex Abrasion Tester
Clamp the sample on a pair of clamps, apply prescribed pressure to the sample through the clamp plane, and a movable clamp drives the sample to move back and forth to simulate the action of rubbing.
Key Specification of Scott Type Crease Flex Abrasion Tester
|
Model |
AF75 Scott Type Crease Flex Abrasion Tester |
|
Test position |
2 |
|
Sample dimension |
30mmx120mm |
|
Fixture distance |
30mm |
|
Test Stroke |
50mm |
|
Fixture Pressure |
1kgf (9.8N) |
|
Air pressure |
6kgf/cm^2 |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
58x45x45cm |
|
Weight |
60kg |
